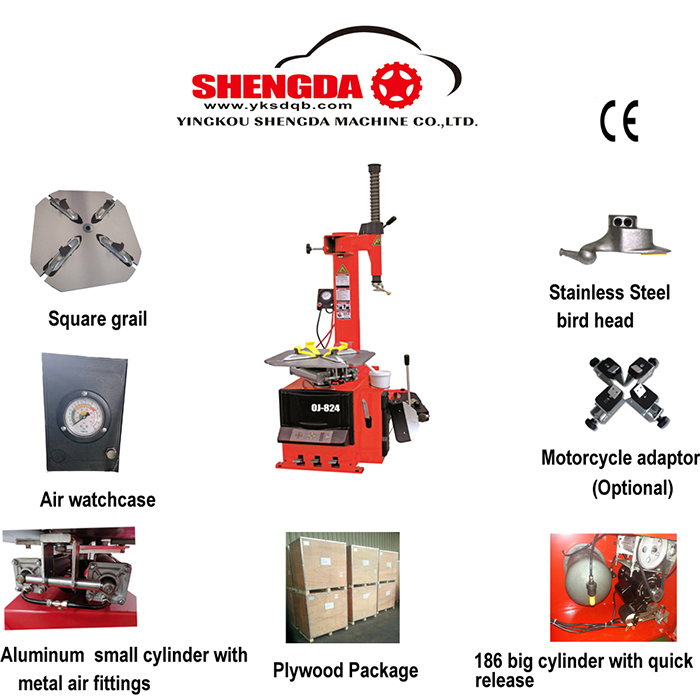

OJ-824 Tire Changer

【 Size:Large Medium Small
2024-03-14 00:00:00  Views : 1926


1.       Semi –Automatic

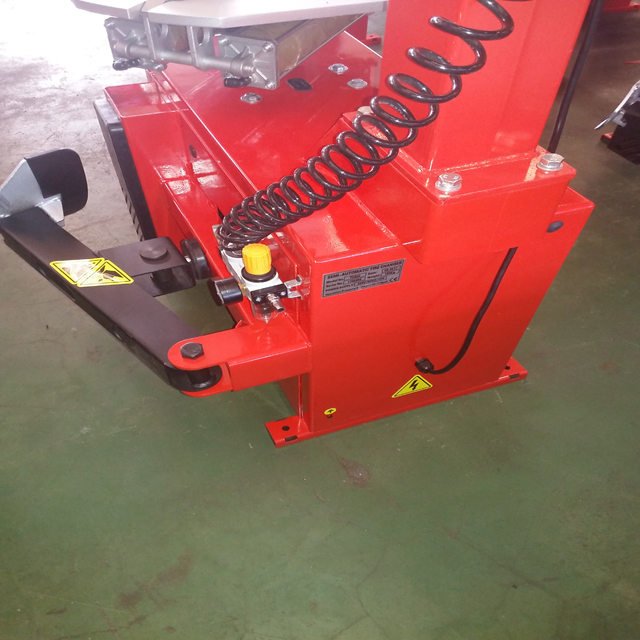

2.       Aluminum bracket pedal assembly, unique structure ,exquisite and durable, convenient repair

3.       S41 enhanced mounting bar provide long time and high strength service without any mechanical de formation

4.       Enhanced inner box structure provide long time and high strength service without any mechanical deformation

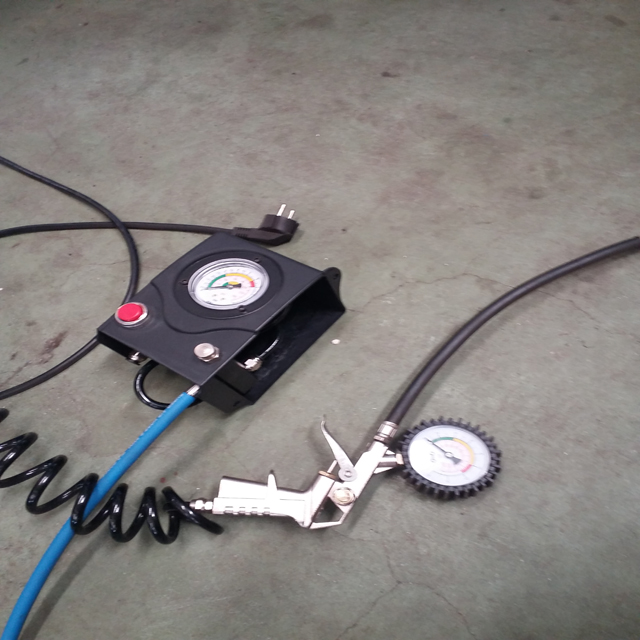

5.       Optional quick inflator device


Technical data:

OJ-824

Rim clamping from outside

10"-22"

Rim clamping from inside

12"-24"

Max. wheel diameter:

1040mm/1140mm/1200mm

Max. wheel width/turntable:

410mm(16")

Max. wheel width/bead- breaker:

360mm

Bead-remover cylinder

(force at 10 bar)

2500Kg

Operating pressure

8-10bar(145Psi)

Power supply

8-10bar



1ph / 3ph

Motor power

0.75-1.1Kw

Net weight:

240Kg

Noise

<70dB

Packing outside dimension:

1030m*760mm*880mm

FCL

30pcs/20”  99pcs/40”












Welcome to our company have a visit for all friends, we will give the best quality and service to new and old customers ,So that everyone is satisfactory. I believe select the ShengDa’ Products, will be the best choice.
