Standard Features:

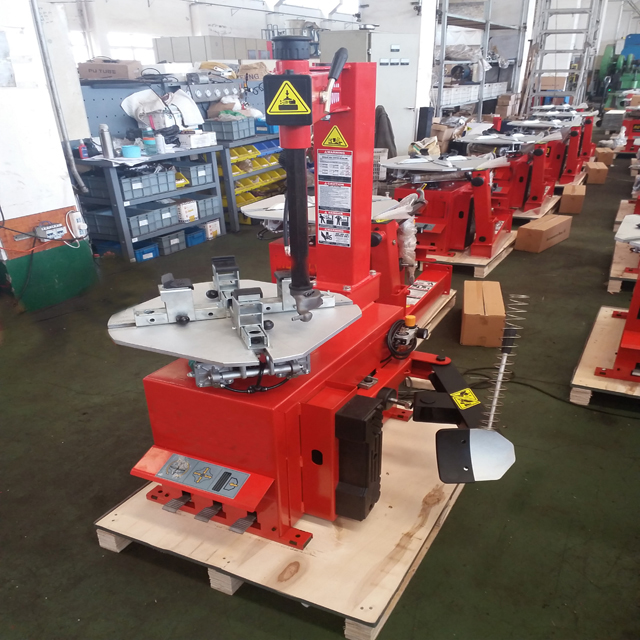

1. Semi-Automatic tire changer designed to mount the demount motorcycle, scooter, ATV wheels ,go-kart. It is conceived for bike operator lokking for a tradional beak braking system.
2. The self – centre turntable locks with standards adapter.
3. Swing arm saves space
4. Self-center four jaws with double pneumatic cylinder for secure clamping of all rim types.
|
Standard Features |
OJ-821 |
|
Rim Diameter |
9"-24" |
|
Max Wheel Diameter: |
960mm |
|
Max Wheel Width |
300mm(12”) |
|
Operating Pressure |
8-10bar(145Psi) |
|
Power Supply |
110v/220v/380v |
|
1ph / 3ph |
|
|
Motor Power |
0.75-1.1Kw |
|
Net Weight: |
180Kg |
|
Noise |
<70dB |
|
Packing Size: |
970mm*765mm*960mm |
|
FCL |
36pcs/20” 72pcs/40” |
