OJ-2800E Heavy Model
Min Scissor Lift

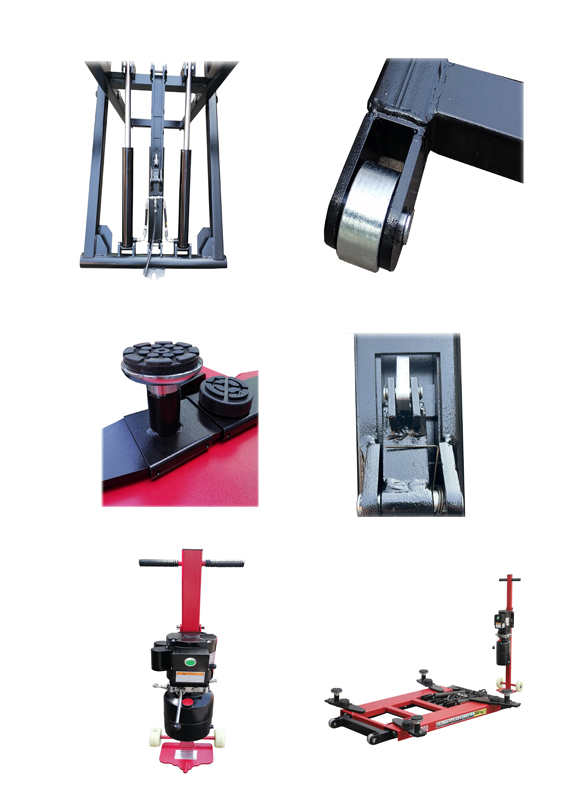

1.This Lift is Manual Release Lock
Also could choose Pneumatic Release Lock.
2.It with wheels, could movable when machine down.
3.Optional 24v control box.
4.It with rubber pads.
|
Standard features |
OJ-2800E |
|
Liftting Capacity |
2800Kg |
|
Maximum lifting height |
1200mm |
|
Platform height |
120mm |
|
Motor |
2.2Kw |
|
Lifting time |
30s adjustable |
|
Total width |
1520mm |
|
Air pressure |
5-10Bar |
|
Oil tank |
7L |
|
Net weight |
395Kg |
|
Gross weight |
415kg |
|
Oil pressure |
16Mpa |
|
Packing |
2100*1130*220mm 400*400*1140mm |
|
FCL |
41pcs/20’’ 66pcs/40’’ |
