SDL-40K Two Post Lift :

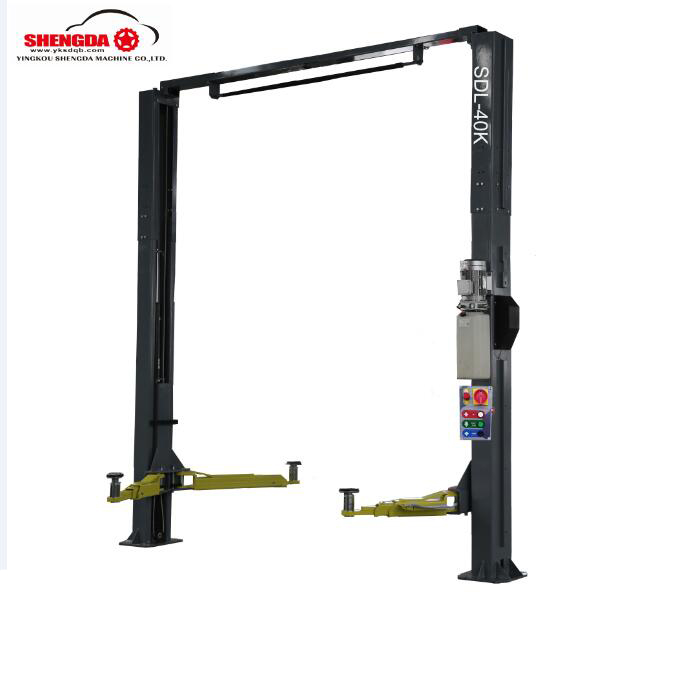

Clear Floor Two Post Lift SDL-40K
1. Automatic Electric Release Lock
2. Direct drive
3.Two Hydra Cylinder
4. 6mm thickness steel material for pillar
5. Limited witch for max height automatic stop.
6.Door Opening protection rubber avoid damages.

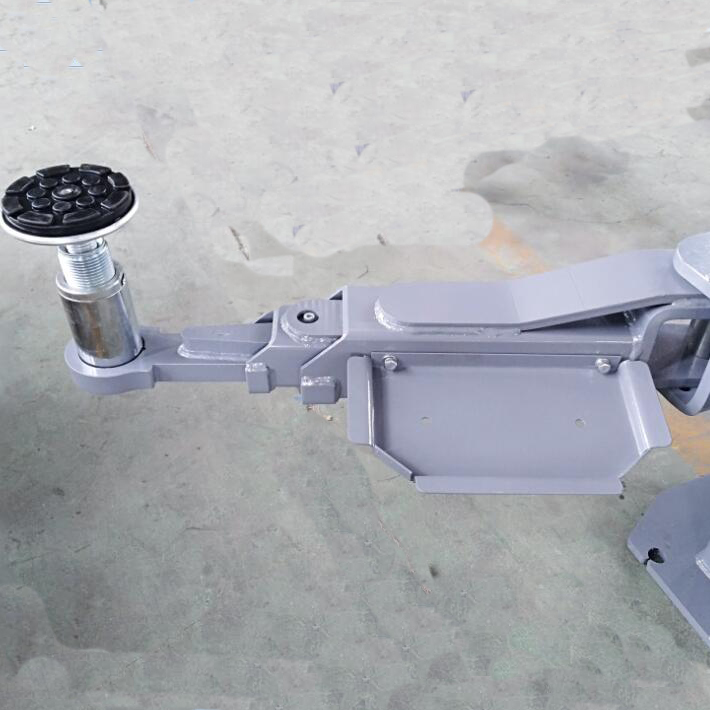

7. 3+2 steps arms..
8.Feet protection+tools box design on arms .

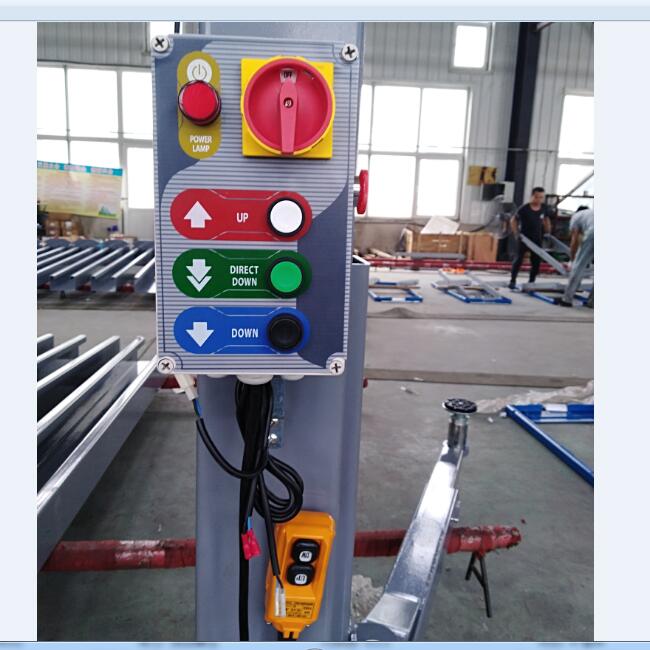

9.Remote control systerm.
10.Two pillar design,could adjust total height.
Standard features
SDL-40K
Capacity
4000kg
Maximum lifting height
1900mm+150mm
Drive
Hydraulic cylinder drive.
Control
Control
Box/ Tele controller
Pillar Thickness
6mm
Minimum height
100mm
Arms
3+2steps arms.
Overall width
3445mm
Overall height
3750mm
Lifting time
45s
Motor
2.2Kw220-415V50/60Hz,
Net weight
850Kg
Oil pressure
20Mpa
Packing
4580*540*720mm
890*560*300mm*2
FCL
20pcs/20’’
