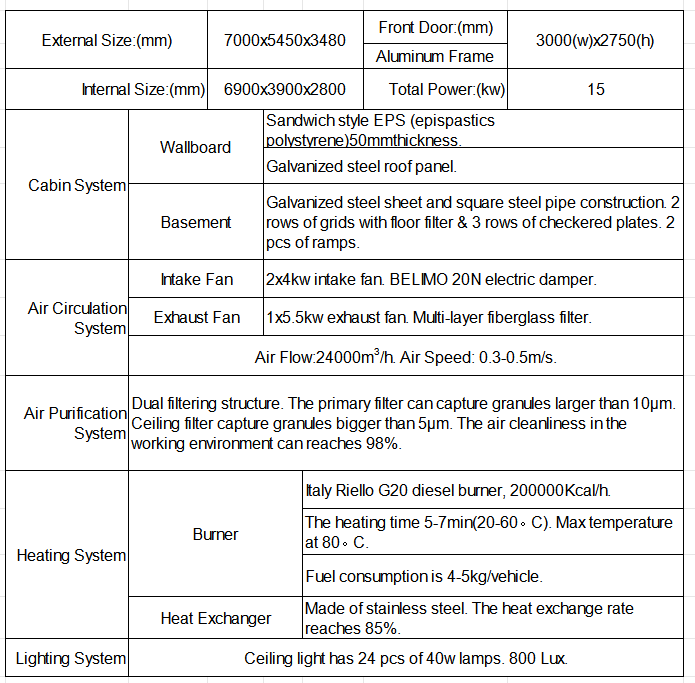

External Size:(mm) |
7000x5450x3480 |
Front Door:(mm) Aluminum Frame |
3000(w)x2750(h) |
|||
|
Internal Size:(mm) |
6900x3900x2800 |
Total Power:(kw) |
15 |
|||
|
Cabin System |
Wallboard |
Sandwich style EPS (epispastics polystyrene)50mmthickness. Galvanized steel roof panel. |
||||
|
Basement |
Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps. |
|||||
|
Air Circulation System |
Intake Fan |
2x4kw intake fan. BELIMO 20N electric damper. |
||||
|
Exhaust Fan |
1x5.5kw exhaust fan. Multi-layer fiberglass filter. |
|||||
|
Air Flow:24000m3/h. Air Speed: 0.3-0.5m/s. |
||||||
|
Air Purification System |
Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
|||||
|
Heating System |
Burner |
Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60。C). Max temperature at 80。C. Fuel consumption is 4-5kg/vehicle. |
||||
|
Heat Exchanger |
Made of stainless steel. The heat exchange rate reaches 85%. |
|||||
|
Lighting System |
Ceiling light has 24 pcs of 40w lamps. 800 Lux. |
|||||
